FluorPure-HP PTFE Filters
Request a QuoteIntroduction
MS®PTFE filters using high precision of expanded PTFE membranes along with non-woven support that provide an economical alternative to all fluorine media cartridges. FlorPure-HP can be used to remove the nanometer particles from chemical liquid to ensure high level cleanliness. This advanced fluid dynamics design provides enhanced lateral flow across, through and out of the membrane, which allows the high permeability property of the membrane to be fully utilized.
Features
- Final filter grades, high flow rates and low pressure drop
- Special pleat design ensure greater surface area Improved Flow， and longer service life
- Manufactured in a clean room environment
- 100% integrity tested
Applications
- Chemical liquid POU filtration
- High cleanliness solvent and liquid
- All kinds of aggressive bases chemical
- Clean gases
Specifications
| Materials of Construction | |
| Filter Medium | PTFE |
| Support and drainage | PP |
| Inner support core | |
| Outer protection cage | |
| End caps | |
| O-Rings | Please refer to ordering information |
| Recommended Operating Conditions | |
| Maximum Temperature | 168℉ (80℃) |
| Maximum Pressure | 58psi (4bar)@ 70℉ (21℃) |
| Particle Removal Ratings(Nominal, μm) | 0.03, 0.05, 0.1 |
| Effective Filtration Area | 7.54ft²/10”in length (0.7m²/250mm) |

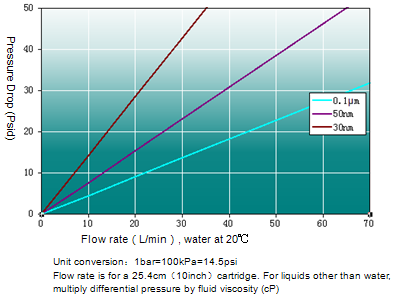

Pressure Drop vs. Liquid Flow Rate
