PVDF hollow fiber ultrafiltration
Request a QuoteProduct Description
MS PVDF hollow fibre Ultrafiltration(UF) membrane is made of high chemical-tolerant PVDF material with high clean-ability, low chemical consumption, high recovery, and a superior combination of mechanical properties and chemical resistance, while the UF filtration technology is widely applied in the treatment for general water or industrial wastewater.
Features
- Modified PVDF for greater hydrophilicity, smoother, less fouling
- Intercept bacteria and viruses, stable outputs quality
- High chemical resistance
- High intensity with membrane silk lining design
- Simple and reasonable design, easy to change-out
- Low operating pressure, energy saving
Applications
- Seawater RO pre-filtration
- Injection water treatment in Oil & Gas
- Industrial sewage deeply treatment & reuse
- Municipal sewage treatment and reuse
- Surface water and groundwater treatment
- Pre-filtration for drinking water
| Module Type |
UFF003S4008 |
UFF003S4040 |
UFF003S6060 |
UFF003S6075 |
UFF003S4022 |
| Membrane Surface Areas (m2) | 8 | 40 | 60 | 75 | 22 |
| Material | PVDF | PVDF | PVDF | PVDF | PVDF |
| Pore Size（μm） | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| ID/OD(mm) | 0.7/1.3 | 0.7/1.3 | 0.7/1.3 | 0.7/1.3 | 0.7/1.3 |
| Flow Configuration | Outside -in | ||||

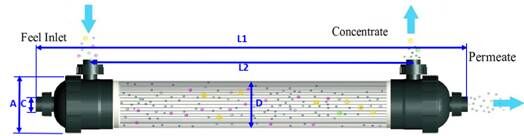

| L1（mm） | 1150 | 1470 | 1870 | 1670 | 1352 |
| L2（mm） | 1020 | 1055 | 1455 | 1595 | 1128 |
| D（mm） | 90 | 200 | 200 | 250 | 160 |
| A (mm) | 110 | 240 | 240 | 280 | 190 |
| Connector (DN) | 25 | 40 | 40 | 40 | 32 |
| Housing Material | UPVC | ||||
| Module Plate Material | UPVC | ||||
| End Cover Clamp Under Material | Stainless steel | ||||
| Seal Gum Material | Epoxy Resin | ||||
| Module Weight（kg） | 8 | 25 | 35 | 45 | 20 |
