50mm Vent Filters

Item No	Product Name	Description
VPTFE50100S	Sterile Gas Venting Filter	Pore Size:1.0μm, Diameter:50mm	Request a Quote
VPTFE5022N	Gas Venting Filter	Pore Size:0.22μm, Diameter:50mm	Request a Quote
VPTFE5022S	Sterile Gas Venting Filter	hydrophobic PTFE, Pore Size:0.22μm, Diameter:50mm,	Request a Quote
VPTFE5045N	Gas Venting Filter	Pore Size:0.45μm, Diameter:50mm	Request a Quote
VPTFE5045S	Sterile Gas Venting Filter	Pore Size:0.45μm, Diameter:50mm	Request a Quote

Product Description

MS^® Venting Filter is also named vacuum protection filter or gas line filter. Filter units with MS hydrophobic PTFE membrane are ideal for sterilizing gases, venting sterile containers, and sterilizing or clarifying organic solutions and protect your laboratory. The large effective filter area provides high flow rates and filters can be autoclaved several times ensuring low costs.

50mm in-line Filter

Different with Other Products

Large surface area provides more than 30% higher throughput and air
Various kinds of membrane others brands
Double injection for higher pressure

Applications

Sterile venting of small fermenters and containers
General sterile filtration of gases and air
Sterilizing or clarifying organic solutions
Decreases contamination risks, ideal for gas lines for CO2 incubators
Chromatography solutions

Specifications (50mm diameter)

Pore Size	0.1, 0.22, 0.45, 0.65, 0.8,1.0,1.2um
Material	PTFE (PES/NY66/PP/GF/PVDF...)
Housing	Polypropylene
Membrane Diameter	50mm
Filtration Area	≥0.021 cm²
Air flow Rate	≥25 L/min at 1 bar (For example: 0.22um)

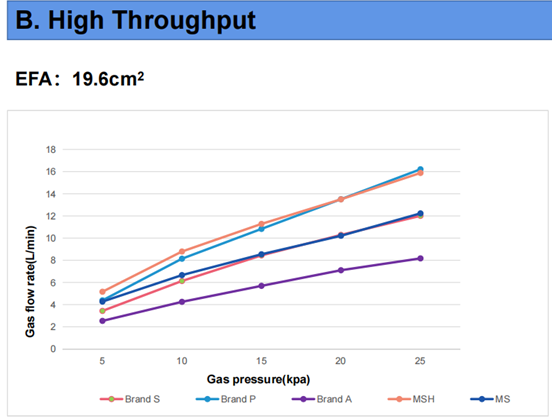

Typical Flow Rates

Ordering Information

50mm	VPTFE5022N	PTFE	Hydrophobic	0.22	7-13mm Hosebarb	N/A	20/box
	VPTFE5045N	PTFE	Hydrophobic	0.45	7-13mm Hosebarb	N/A	20/box
	VPTFE50100N	PTFE	Hydrophobic	1	7-13mm Hosebarb	N/A	20/box
	VPTFE5022S	PTFE	Hydrophobic	0.22	7-13mm Hosebarb	ETO	individual pack, 20/box
	VPTFE5022TS	PTFE	Hydrophobic	0.22	7-13mm Hosebarb	ETO	individual pack, 20/box
	VPTFE5045S	PTFE	Hydrophobic	0.45	7-13mm Hosebarb	ETO	individual pack, 20/box
	VPTFE50100S	PTFE	Hydrophobic	1	7-13mm Hosebarb	ETO	individual pack, 20/box

*Other specification and details, please contact local agency.
