SteriPure-B Series Sterile-grade PES Pleated Filter Cartridge with High Flow Rate and High Efficiency
SteriPure-B series PES pleated filter cartridge is made of imported asymmetric PES membrane, which has ultra-low protein binding and dissolution/precipitation level. Its good heat resistance enables the filter cartridge to withstand multiple moist heat sterilization. Batch bacteria challenge guarantees the stable bacteria removal ability of the filter cartridge. Due to the reasonable structure of SteriPure-B, the advantages of high flow rate and high dirt holding capacity of asymmetric polyethersulfone membranes can be fully utilized. SteriPure-B can provide better performance compared to similar products, while ensuring low cost.
Full Description
Online Ordering
暫無(wú)選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |

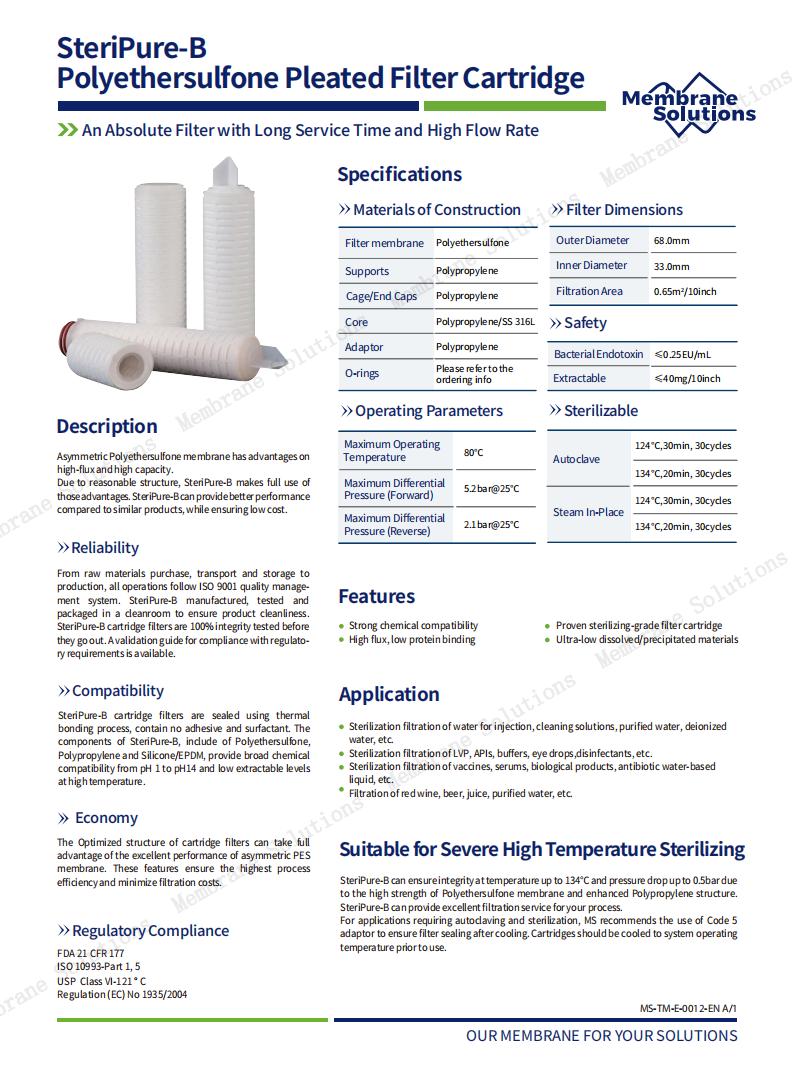

SteriPure-B -Datasheet |
Features
- Strong chemical compatibility
- High flux, low protein binding
- Proven sterilizing-grade filter cartridge
- Ultra-low dissolved/precipitated materials
Applications
- Sterilizing filtration of water for injection, cleaning solutions, purified water, deionized water, etc.
- Sterilizing filtration of LVP, APIs, buffers, eye drops, disinfectants, etc.
- Sterilizing filtration of vaccines, serums, biological products, antibiotic water-based liquid, etc.
- Filtration of red wine, beer, juice, purified water, etc.
- Sterilizing filtration of syrup and dairy products
Technical Parameters
| Materials of Construction | Filter Membrane | Polyethersulfone |
Support/Drainage |
Polypropylene | |
| Cage/End Cap | Polypropylene | |
| Core | Polypropylene/SS 316L | |
| Adaptor | Polypropylene | |
| O-rings | Please refer to the ordering info | |
| Filter Dimensions | Outer Diameter | 68.0mm |
| Inner Diameter | 33.0mm | |
| Filtration Area | 0.65m²/10inch | |
| Operating Conditions | Maximum Operating Temperature | 80℃ |
| Maximum Differential Pressure (forward) | 5.2 bar @ 25℃ | |
| Maximum Differential Pressure (reverse) | 2.1 bar @ 25℃ | |
| Safety | Endotoxins | ≤0.25 EU/mL |
| Extractables | ≤40 mg/10 inches | |
| Sterilizable | Autoclave | 124℃,30min,30cycles |
| 134℃,20min,30cycles | ||
| Steam In-Place |
124℃,30min,30cycles |
|
| 134℃,20min,30cycles | ||
