RPS Water Purifier System Filter Housing Description

MS’s PRS water purifier system filter housing designed with a new plastic injection molding; the housing has a hard texture, good sealing and large compressive strength. These housings are especially essential in the resident water purifier system and RO drinking system.

For these filter housing, securely retained Buna “N” O-Ring to ensure effective by positive tangential contact; eliminates accidental misplacement; provides longer life, and positive head to bowl “stop” to prevent bowl over tightening.

They are constructed entirely of PP (polypropylene) and AS (Acrylonitrile-styrene copolymer) plastic material that under the FDA standard of food grade without color, adders, fillers, reinforcements or lubricants. In critical applications, these all natural housings insure pure, cost effective filtration of a variety of solvents, acids, alcohols and chemicals without leaching or bacterial build up.

Applications

• Resident water purifier system
• RO drinking system
• Laboratory instrumentation and equipment
• Post filter for reverse osmosis or ultra filtration

Features

• 100% polypropylene or polystyrene construction of bowl
• Smooth contact surfaces to prevent bacteria and dirt buildup
• Utilizes a non-lubricated O-ring ensure security
• Standard NPT connections easy to assemble
• Thicker bowl increase the compressive capacity and explosion proof strength

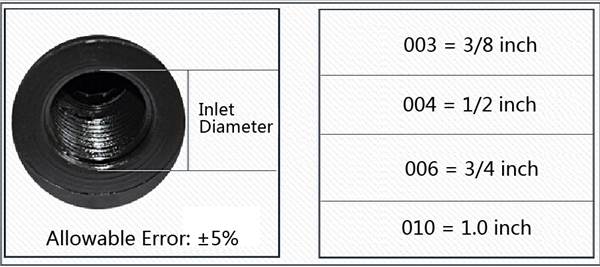

Connect Type

Specification

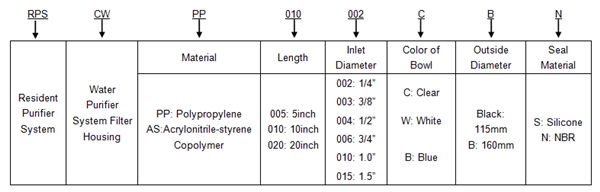

Ordering Information
