SMBH Series Side Entry Multi-bags Filter Housing
Request a Quote| Item No | Product Name | Description | |
|---|---|---|---|
| SMBH02S01FDN25FM | Side Entry Multi-bags Filter Housing | SUS304 , 2Core, Bag01, Flange, Inlet/Outlet DN25 Flange, FKM O-ring, Mechanical Polishing | Request a Quote |
| SMBH02S01KDN25FM | Side Entry Multi-bags Filter Housing | SUS304 , 2Core, Bag01, Tri-clamp, Inlet/Outlet DN25Clamp, FKM O-ring, Mechanical Polishing | Request a Quote |
Description
SMBH series multi-bags filter housing is suitable for large flow filtration. From 2 bags to 24 bags, the specifications are complete, and quick-open design is available. The filter bag is convenient to disassemble and replace. It is suitable for occasions where the filter bag is expected to be used for a long time. The impurities filtered by the bag filter housing are inside the filter bag, and the impurities are collected easily, especially suitable for safety filtration and high flow industrial filtration.
Characteristics and Advantages
- Filter housing flange with rocker arm+ring head bolt
- High quality O-ring seal ensures easy running, easy and safe operation
- All parts in contact with the liquid are made of stable stainless steel, which is anti-corrosive to many kinds of liquids
- The compact design and volume of the filter housing minimize the loss of liquid
- The design of two to twenty-four bags
Specification
| Connection | Body Connection | Swing bolt,Wear Bolt |
| Inletand Outlet | Tri-clamp,Flange,Thread | |
| Vent | Thread | |
| Drain | Thread | |
| Material | Housing Body | 304,316L |
| Eyebolt | 304 | |
| Feet Support/Rocker Arm | 304 | |
| Sealing Material | Silicone Rubber/Viton/EPDM/PFA | |
| SurfacePolishing Treatment |
Polish Type | Mechanical polishing,Sandblasting |
| Surface Option | Internal Ra:≤0.6μm,External Ra:≤0.8μm | |
| Operating Conditions |
Design Pressure | 1.0 Mpa |
| Operating Temperature | 130℃ |
*Specific configuration parameters can be customized according to customer requirements

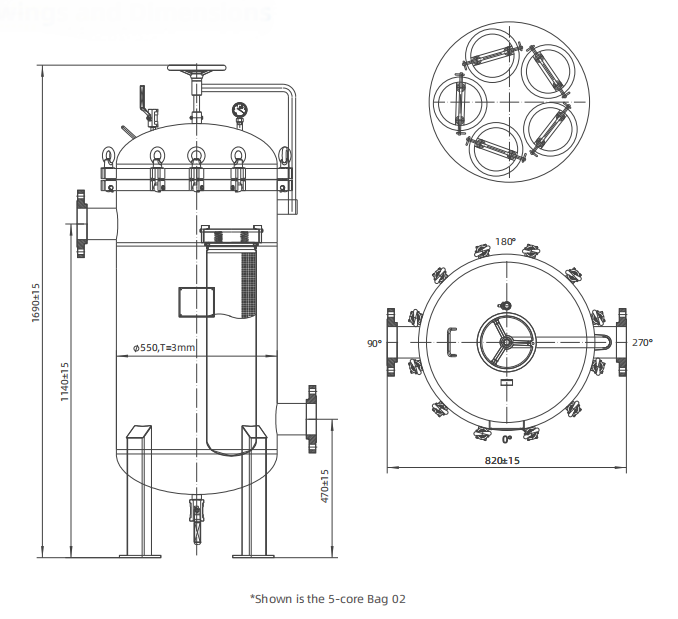

Drawings and Dimensions
Ordering Information
| Number of Filters | Material | Filter bag model | Housing Connection | Inlet and Outlet Types | Inlet/Outlet Size | Sealing | Surface Polishing Treatment |
||
|
SMBH SMBH II |
02=2 bags |
S=304ss L=316L |
01=Bag 1 02=Bag 2 03=Bag 3 04=Bag 4 |
D=Swing Bolt L=Wear Bolt |
K=Tri-clamp F=Flange S=Thread L=Wear Bolt |
DN50 DN80 DN100 DN150 DN200 DN250 |
S=Silicone F=FKM E=EPDM |
MI=Mechanical Polishing (Industrial grade) C=Internal Polishing and External Sandblasting |
|
SMBH：Water outlet on the side
SMBH II：Water outlet is at the bottom
