Introduction

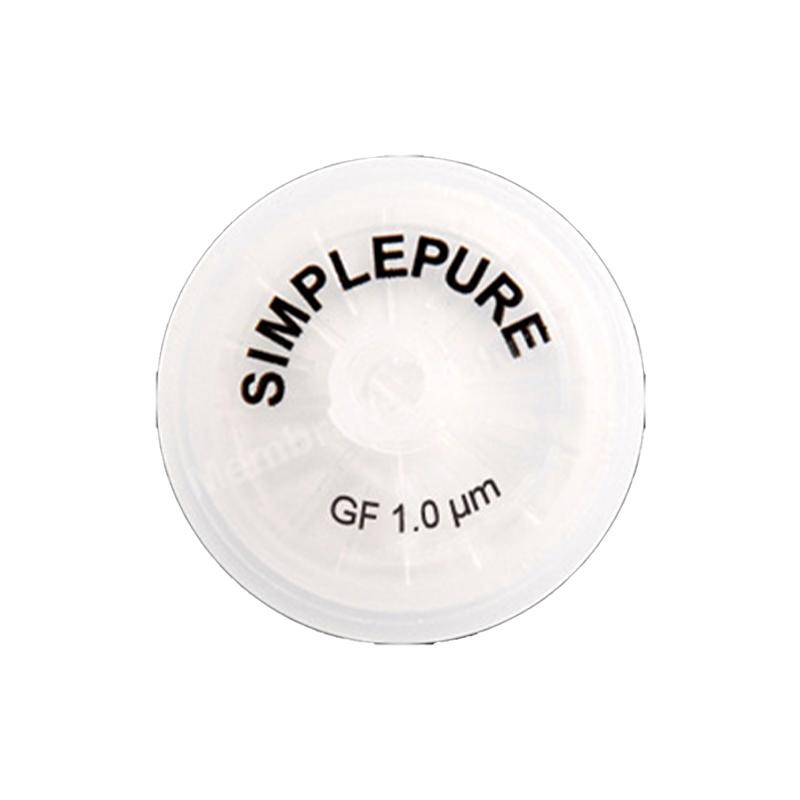

• SimplepureTM syringe filter consists of housing and membrane components.
• Transparent PP housing makes filtration process visiable and easy to observe.
• Ultrosonic welding and medical grade virgin PP raw material eliminate extractables to ensure excellent testing results.
• Ultimate fine-edge-structure features the maximum effective filtration area.

Memebrane

• Multiple membrane medium maximizes chemical compatibility for wide applications.
• Full options of pore sizes are available for more accurate sample filtration.

Design

• Concise and unique structure design makes the best use of every component and offers cost-effectiveness.

Agilent Technologies 1200, Column: C18 UV = 254 nmMob.phase:MeOH/H2O:20:80, Temperature: 25°C, Flow rate:0.8ml/min, sample:2mg/ml Bergenin(in Methanol) Simplepure Syringe Filter PDF

Features

• Application compatibility: Broad range of filtration media meets diverse application needs
• Minimum sample hold-up: Syringe Filters’ housings are specifically designed to maximize sample recovery
• Convenience: Each unit is clearly marked with an identifying code to denote pore size, membrane material
• Sterility: Filters can be purchased pre-sterilized by Gamma radiation and individually packaged

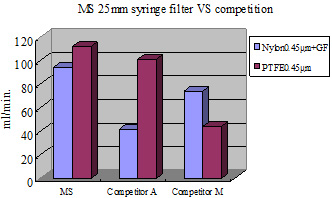

Water flow at 1 bar

Applications

• HPLC sample preparation
• Routine QC analysis
• Content uniformity
• Removal of protein precipitates
• Dissolution testing
• Food analysis
• Biofuel analysis
• Environmental samples

Our Simplepure^TMsyringe filter with pre filter, your BEST CHOICE for hard-to-filter samples!

Membrane Solutions LLC

Ordering information：

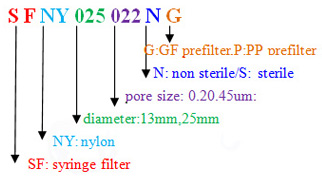

A: How to order?

Ordering Information

Parameters	13mm	25mm
Housing Material	Virgin Medical Polypropylene
Effective Filtration Area (cm²)	1.09	4.08
Pore Size (μm)	0.22, 0.45……
Holdup Volume (μl)	<20	<100
Sample Volume (ml)	<10	<100
Inlet Connection	Female luer lock
Outlet Connection	Male luer slip
Maximum Operating Temperature	50°C	50°C
Maximum Operating Pressure	6 bar	6 bar























How to select your sample preparation device?

Step 1: Choose the suitable membrane filtration medium Characteristics of samples

Solutions	Recommended
Solvent Mixtures	Nylon, MCE
Tissue culture Media, Buffers, Protein Analysis/ Biological Samples	CA, PVDF, PES
High Particulate Loads	With GF or PP pre-filter
Aggressive or Pure Organic Solvents	PTFE, PVDF



Step2: choose the suitable diameter

Volume of Samples
<10ml	<100ml
13mm	25mm









Step 3: Choose the suitable pore size based on the nature of your sample

• Removal of high particulate matter with a glass fiber pre filter is critical before any drug, toxic, or dirty environmental sample is filtered to ensure the highest syringe filter membrane performance.
• Generally, 0.45 µm porosity filters are used to remove particulates from samples and mobile phase solutions. For sterile-filtration, a 0.20 µm porosity filter can be used.

13mm
Catalogue No.	Membrane	poresize(um)	Quantity(pcs)/pack
SFNY013022N	nylon	0.22	100
SFNY013045N	nylon	0.45	100
SFPTFE013022NB	PTFE	0.22	100
SFPTFE013045NB	PTFE	0.45	100
SFPTFE013022NL	PTFE	0.22	100
SFPTFE013045NL	PTFE	0.45	100
SFPVDF013022N	PVDF	0.22	100
SFPVDF013045N	PVDF	0.45	100
SFPES013022N	PES	0.22	100
SFPES013045N	PES	0.45	100
SFCA013022N	CA	0.22	100
SFCA013045N	CA	0.45	100
SFPP013022N	PP	0.22	100
SFPP013045N	PP	0.45	100
SFMCE013022N	MCE	0.22	100
SFMCE013045N	MCE	0.45	100

25mm
Catalogue No.	Membrane	poresize(um)	Quantity(pcs)/pack
SFNY025022N	nylon	0.22	100
SFNY025045N	nylon	0.45	100
SFPTFE025022NB	PTFE	0.22	100
SFPTFE025045NB	PTFE	0.45	100
SFPTFE025022NL	PTFE	0.22	100
SFPTFE025045NL	PTFE	0.45	100
SFPVDF025022N	PVDF	0.22	100
SFPVDF025045N	PVDF	0.45	100
SFPES025022N	PES	0.22	100
SFPES025045N	PES	0.45	100
SFCA025022N	CA	0.22	100
SFCA025045N	CA	0.45	100
SFPP025022N	PP	0.22	100
SFPP025045N	PP	0.45	100
SFMCE025022N	MCE	0.22	100
SFMCE025045N	MCE	0.45	100

1. Special specifications are available like pore size: 0.1um, 1.0um, 3.0um, 5.0um diameter: 13mm, 25mm, membrane medium: glass fiber, with pp or glass fiber pre filter
2. Sterile Syringe filter of all materiel are available.
3. Free samples are available. We’ve standard sample pack for customers
