MS?SW RO Element
Request a QuoteFeatures
- ?Excellent rejection rate and reliable performance
- High salt rejection
- Suitable to treat waste water with TDS more than 5000 ppm
- Designed for various industrial water treatment
- Applicable for recycling of wastewater, concentration and reclamation
Application
- Seawater desalination
- High-concentration brackish water desalting
- Boiler water replenishment for power plant
- Foodstuff
- Pharmaceuticals
Specifications

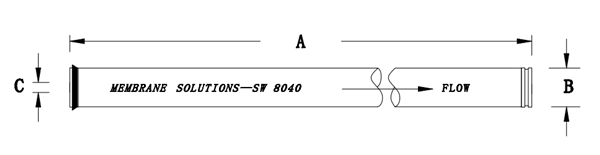

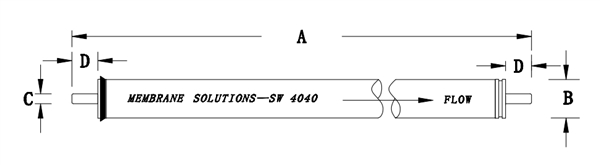

| Model Type | SWRO4040 | SWRO8040 |
| A（inch/mm） | 40/1016 | 40/1016 |
| B（inch/mm） | 3.94/99.6 | 7.84/201.8 |
| C（inch/mm） | 0.75/19.1 | 1.13/28.6 |
| D（inch/mm） | 1.05/26.7 | - |
| Active Membrane Area（ft2/m2） | 80/7.4 | 380/35.2 |
| Average Permeated FlowGPD（m3/d） | 1400(5.3) | 6000(22.7) |
| StableRejection Rate(%) | 99.5 | 99.7 |
| Minimum Rejection Rate(%) | 99.2 | 99.5 |
| Testing Pressure（psi） | 800 | |
| Testing Temperature（℃） | 25 | |
| Testing pH | 7.5 | |
| Testing Solution Concentration(NaCl, ppm) | 32800 | |
| Recovery Rate of Single Element | 8% | |
| Max. Working Pressure（psi） | 1000 | |
| Max.water Permeated Flow(gpm) | 75(8040)/16(4040) | |
| Max. Feedwater Temperature（℃） | 45 | |
| Max. Feedwater SDI | 5 | |
| Free Chlorine Concentration of Feedwater（ppm） | ≤0.1 | |
| pH Range of Feedwater during Continuous Operation | 3月10日 | |
| pH Range of Feedwater during Chemical Cleaning | 2月12日 | |
| Max.Pressure Drop of Single Membrane Element（psi） | 15 | |
Note:The permeate flow listed in the table is the average value. The permeate flow of single membrane element is within a tolerance not exceeding ±15% of the nominal value.
