PVDF Membrane for Venous Indwelling Needle
Description
Venous indwelling needle is a better solution for transfusion. On the one hand, it can relieve pains for patients especially for babies; on the other hand, it can reduce the workload of nurses. Microporous membrane is mainly used in straight venous indwelling needle for its effective retention of foreigners. MS®PVDF membrane is recommended for superior performance.
Features and Benefits
- Good chemical compatibility
- No fiber release
- Naturally hydrophobic
- Excellent thermal stability
Specification
| MS Hydrophobic PVDF | |
| Membrane Name | Hydrophobic PVDF |
| Membrane Material | PVDF |
| Support Material | NO |
| Structure | Asymmetric |
| Color | white |
| Suface | Plain |
| PH range | 1-14 |
| Wetting | Hydrophobic |
| Thickness | 100-130μm |
| Removal rating,μm | 5 |
| Forward maximum operating pressure | 4.2bar@23℃，1.5bar@85℃ |
| Flow rate@25℃ alcohol | |
| 5.0μm | ≥300ml/min/cm²@10Psi |
| Sterilization | By autoclave at 121℃ or EO or γ-rays |
*Custom roll, Sheet, and disc sizes available upon request and specification of other pore sizes, please feel free to contact with info@membrane-solutions.com.
Quality
- Membranes produced in a controlled environment
- Manufactured according to ISO9001 certified Quality Management System

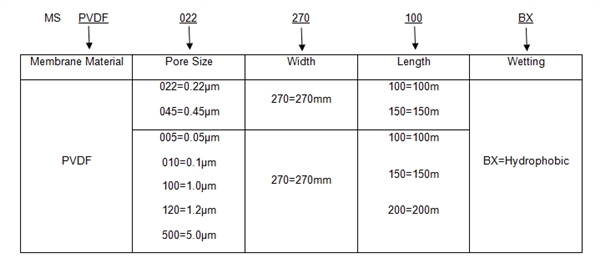

Ordering information
