KynarPure-D PVDF Cartridge Filter
Request a QuoteIntroduction
KynarPure®-D cartridge filters used the appropriate pre-filter layer, which can reduces the plugging rate of end-filter membrane effectively, and maximize extend the service life of two layer membranes and still have high flow rate. The optimized KynarPure®-D cartridge filters can provide longer service time than generic cartridge filters in most applications.

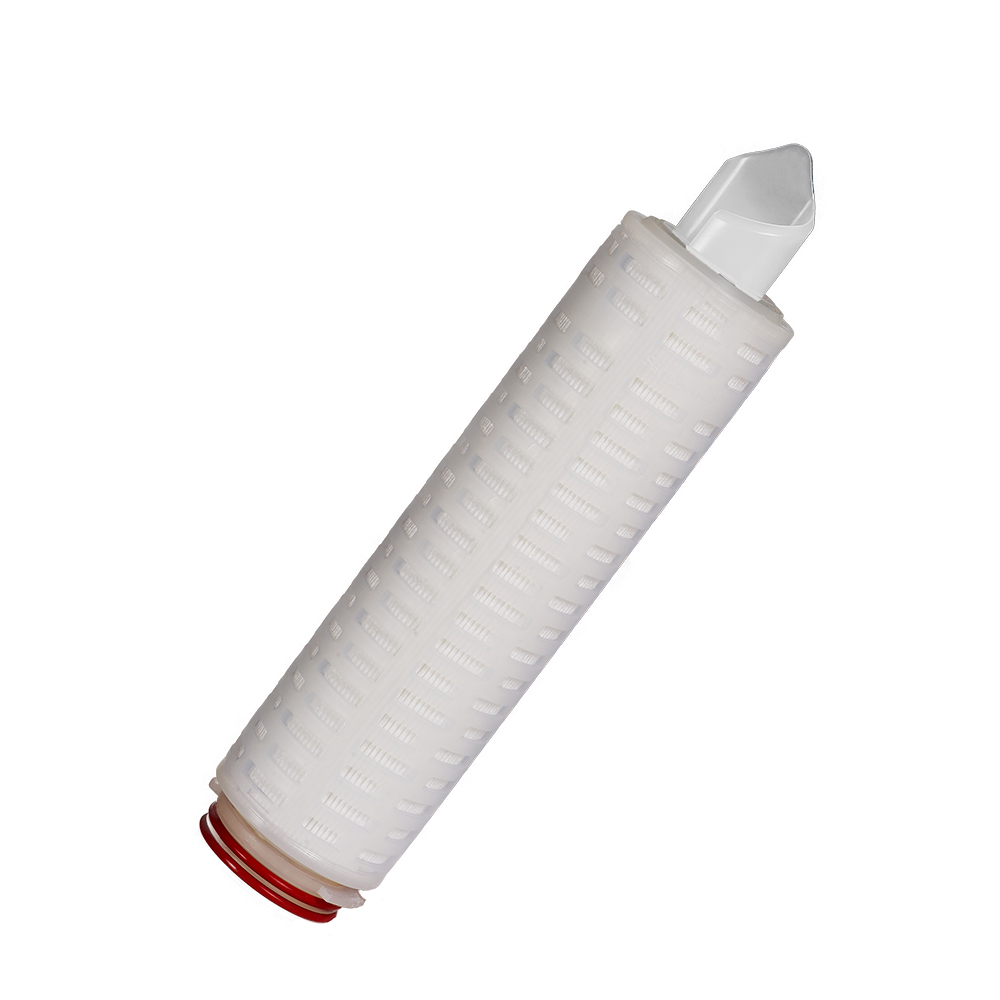

KynarPure®-D PVDF Cartridge Filter
Features
- Excellent Retention Rate
- Low Protein Adsorption
- Longer Service Time
- High Flow Rate
Applications
- Containing serum or peptone cell culture medium
- Blood filtration
- The process material of downstream
- Protein purification
- The clarified cell cultures
- Liquid sterilizing filtration in food and beverage industry
Quality
- FDA Listed Materials
- ISO 9001 Certified Quality System
- Meets USP Class VI (121℃) Biological Safety Test for Plastics
- 100% integrity tested
- Clean room manufacturing environment
- LVR ≥ 10
Specifications
|
Materials of Construction |
||
|---|---|---|
|
Pre-Filter membrane |
Polyvinylidene fluoride |
|
|
End-Filter membrane |
Polyvinylidene fluoride |
|
|
Support/drainage |
Polypropylene |
|
|
Cage/End Caps |
||
|
Core |
Polypropylene/Polysulfone |
|
|
Adapter |
Polupropylene with stainless steel inner /Polypropylene |
|
|
O-Rings/Gaskets |
Silicone/EPDM |
|
|
Operating Conditions |
||
|
Maximum operating temperature |
1.7Bar@82℃ |
|
|
Maximum Forward Differential Pressure |
5.2Bar@25℃ |
|
|
Maximum Reverse Differential Pressure |
2.1Bar@25℃ |
|
|
Recommended change-out pressure |
2.4Bar |
|
|
Dimension |
||
|
Outside/Inner diameter |
68.5mm/33.0mm |
|
|
Lengths |
5″,10″, 20″, 30″, 40″ |
|
|
Effective Filter Area |
0.6m² per 254mm (10inch) |
|
|
Sterilization |
||
|
Autoclave |
30 x 30min @124℃ |
|
|
Steam In-Place (forward, 0.5bar) |
30 x 30min @124℃; 20 x 30min @134℃ |
|

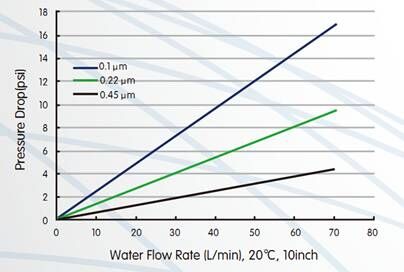

Pressure Drop and Flow Rate
Unit conversion: 1bar=100kpa
Flow rate is for a 25.4cm (10inch), cartridge. For liquids other than water, multiply differential pressure by fluid viscosity (cP)

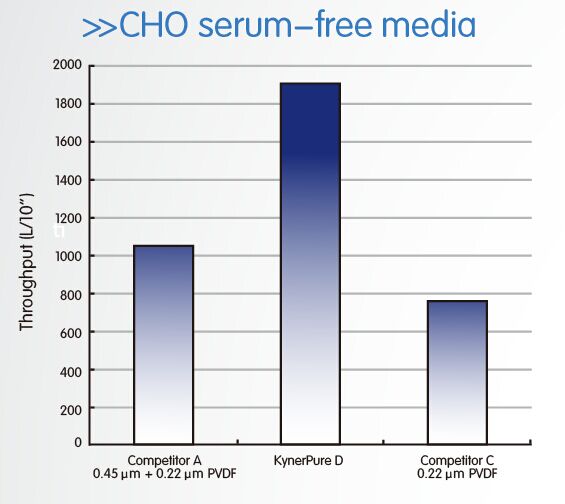

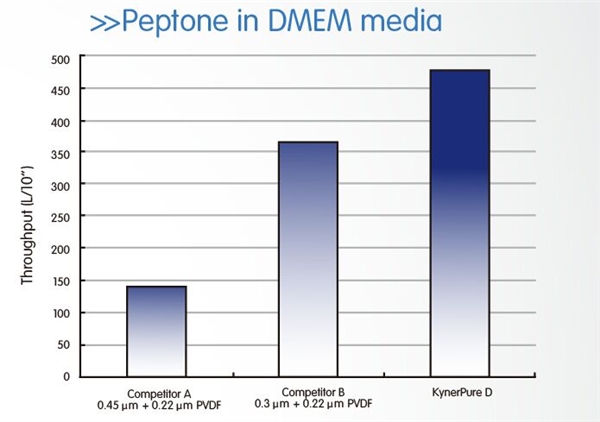

Performance
Ordering Information
|
Example: CRPVDFD0100206SS |
|||||
|
Filter Media |
Length |
Pore Size |
Adaptor |
Sealing |
Core |
|
CRPVDFS: Hydrophilic Polyvinylidene fluoride |
005 = 5 inch 010 = 10 inch 020 = 20 inch 030 = 30 inch 040 = 40 inch |
010= 0.1μm 020 = 0.22μm 040 = 0.45μm |
0 = DOE 2 = 222/Flat 3 = 222/Fin 6 = 226/Fin 7 = 226/Flat |
S = Silicon E = EPDM |
Blank = PP S = stainless steel P = Polysulfone |
