ClearPure? PP Pleated Cartridge Filter
Request a QuoteIntroduction

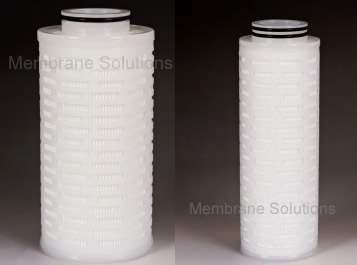

MS ClearPure® Pleated Filter cartridges are manufactured to special purpose, such as LCD processing and other similar applications. The large diameter with big filter area insures to reduce the amount of filter cartridge and the dimension of housing required. The long service life and high flow rate result in low operational cost and less manpower in many applications. The cartridge has two kinds of configuration.
ClearPure® Pleated Filter is large-diameter filter cartridge made by extending the inner and outer diameters achieving highly removal efficiency and remarkable dust holding capacity.
Features
- High flow rate is available
- Workability of change-outs is improved due to the reduction of filter quantity
- Long service life is available
Applications
- Electronics: DI water and R/O water pre-filtration
- Food and Beverage: Beer, Wine
- General Process: Photo Emulsion
- Solvent Filtration
- Electroplating solutions
- Metal etching solutions
- Reagent grade chemicals
Specifications
|
Construction |
|
|
Filter Medium |
Polypropylene, Polysulfone, Hydrophobic PTFE, Hydrophilic PTFE |
|
Inner support core |
Polypropylene |
|
Outer protection cage |
Polypropylene |
|
End caps |
Polypropylene |
|
Cartridge Dimensions |
|
|
Micron ratings |
0.1, 0.2, 0.45, 1, 5, 10μm |
|
Outside Diameter |
83 mm, 131mm |
|
Nominal Length |
10in (250mm) |
|
Type of end cap |
222/226/334 |
|
Operating Conditions |
|
|
Maximum Pressure |
0.49MPa@ 20 ℃ |
|
Maximum Temperature |
80℃≤2.4Bar(35psid) |
|
Steam sterilization |
121℃ / 30 min |
|
Seal Materials |
|
|
Gasket |
Silicon/Viton/NBR/EPDM |
|
O-Rings |
Silicon/Viton/NBR/EPDM |
|
Construction Method |
Weld (No adhesives) |
Features
*Unit conversion：1bar=100KPa

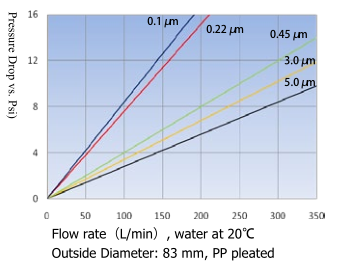

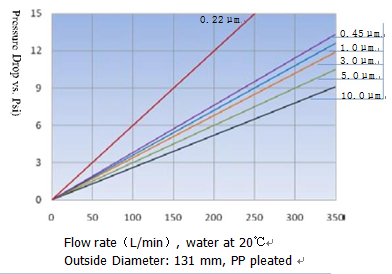

*Flow rate is for a 25.4cm（10inch）cartridge with depth PP material. For liquids other than water, multiply differential pressure by fluid viscosity (cP)

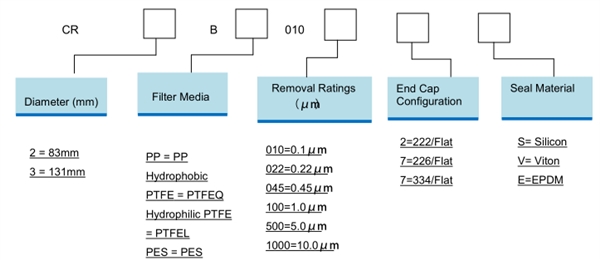

Order Information
