Memafpure Series - All PTFE Filters with Strong Chemical Compatibility
MemAFPure series perfluorinated filter cartridge is composed of high-porosity PTFE membrane
and high-purity PFA plastic parts,which has excellent resistance and stability in highly corrosive
acid, alkali and organic solvent environments. Through post-treatment and 18.2 stable high cleanliness level and ensure the stability of filtration,MΩ.cm UPW flush, it can achieve a
which is the most cost-effective product for high-purity electronic chemical reagent filtration in the semiconductor industry.
Full Description
Online Ordering
暫無選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |

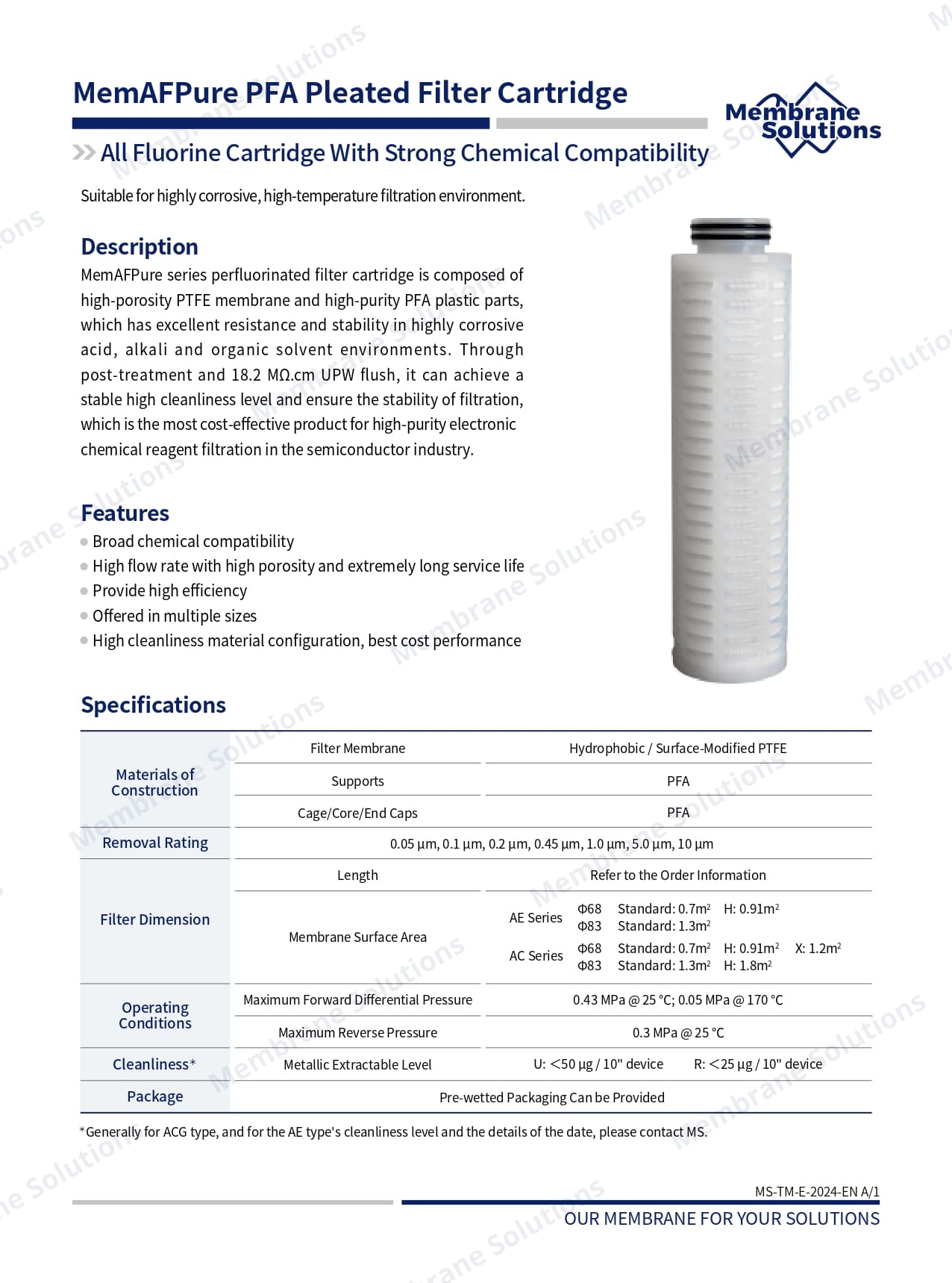

| MemAFPure Series Datasheet |
Features
- Broad chemical compatibility
- High flow rate with porosity and extremely long service life
- Provide High efficiency
- Offered in multiple sizes
- High cleanliness material configuration, best cost peerformance
Applications
Technical Parameters
| Materials of Construction |
Filter Membrane |
Hydrophobic / Surface-Modified PTFE |
|||
| Supports | PFA | ||||
| Cage/Core/End Caps | PFA | ||||
| Removal Rating | 0.05 μm，0.1μm，0.2μm，0.45 μm，1.0 μm，5.0 μm, 10 μm | ||||
| Filter Dimension | Nominal Outer Diameter | 68 mm | 83 mm | ||
| Length | Refer to the Order Information | ||||
|
AE Series |
Φ68 Φ83 |
Standard: 0.7㎡ Standard: 1.3㎡ |
H: 0.91㎡ |
||
| Membrane surface area |
AC Series
|
Φ68 Φ83 |
Standard: 0.7㎡ Standard: 1.3㎡ |
H: 0.91㎡X:1.2㎡ H: 1.8㎡ |
|
| Operating Conditions |
Maximum Forward Differential Pressure |
0.43 MPa @ 25 ℃; 0.05 MPa @ 170 ℃ |
|||
| Maximum Reverse Pressure |
0.3 MPa @ 25 ℃ |
||||
| Cleanliness | Metallic Extractable Level | U: ＜50 µg / 10” device R: ＜25 µg / 10” device |
|||
| Package | Pre-wetted package can be provide | ||||
＊Generally for ACG type, and for the AE type’s cleanliness level and the details of the date, please contact MS.
