FG Strong Chemical Resistance Capsule Filter
FG series capsule filter is made of high porosity hydrophobic PTFE membrane, which has a wide range of chemical tolerance and can provide stable and reliable filtration performance of sterilization and particle removal. Its removal ratings of typical bacteria in the industry have been verified by batches, which can effectively reduce the level of microbial load in liquid filtrate and gas, and is especially suitable for the filtration of various low surface tension chemicals and gases.
FG series capsule filter is available in a wide range of cages and connections, and at the same time have good heat tolerance, can withstand hot water disinfection and steam sterilization for a long time, and is widely used in food and beverage and bio-pharmacy.
Full Description
Online Ordering
暫無選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |
|||
|

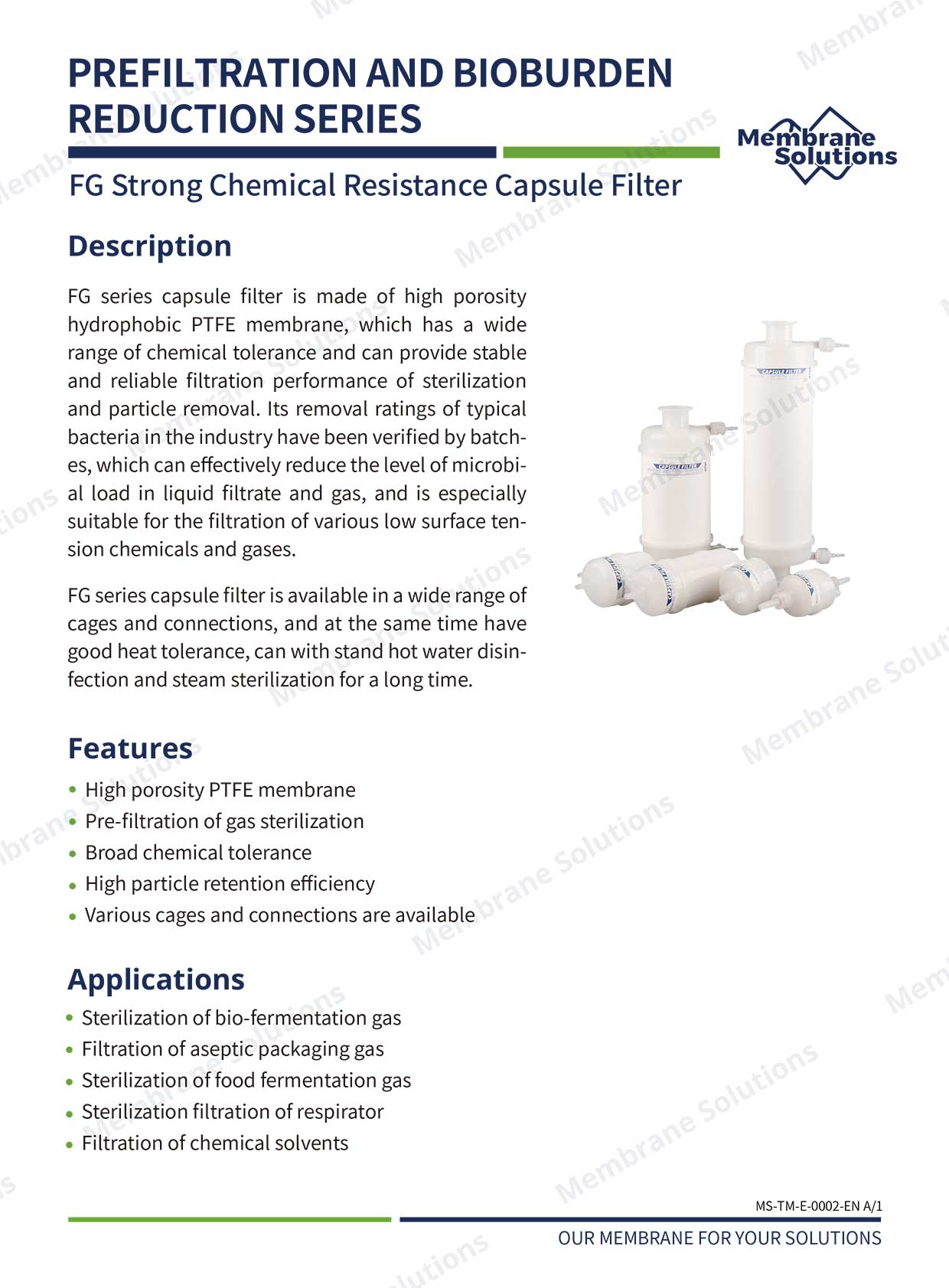

FG Strong Chemical Resistance Capsule Filter-Datasheet |
Features
-
High porosity PTFE membrane
-
Prefiltration of gas sterilization
-
Broad chemical tolerance
-
High particle retention efficiency
-
Various cages and connections are available
Applications
-
Sterilization of bio-fermentation gas
-
Filtration of aseptic packaging gas
-
Sterilization of food fermentation gas
-
Sterilizing filtration of respirator
-
Filtration of chemical sovents
Technical Parameters
| Materials of Construction |
Filter Membrane | ||
| Support/Drainage | PP | ||
| Core/Cage/End Cap | pp | ||
| Capsule Shell | pp | ||
| Filtration Area | C30/C80/C150/C300 C605/C610/C620/C630 |
300cm²/500cm²/1000cm²/2100cm² 3700cm²/7400cm²/14800cm²/22200cm² |
|
| Filter Dimensions | Length of Inner Filter Cartridge |
C30/C80/C150/C300 C605/C610/C620/C630 |
1.5"/1.5"/2.5"/5" 5"/10"/20"/30" |
| Diameter of Inner Filter Cartridge |
C30*/C80/C150/C300 C605/C610/C620/C630 |
42mm³/56mm 68mm |
|
| Diameter of the Shell | C30*/C80/C150/C300 C605/C610/C620/C630 |
60±2mm/72±2mm 108±2mm |
|
| Sterilisation | Autoclave | 124℃,30min,5cycles 134℃,20min,5cycles |
|
| Biological Safety | Bio-compatibility | Meet USP <87> in vitro Cytotoxicity Test Meet the criteria of the USP <88> Biological Reactivity Test for Class VI-121°C plastics |
|
| Endotoxins | <0.25EU/ml | ||
