EXafPure WF Series -All PTFE Filters with Ultra-high Cleanliness
Membrane Solutions ExafPure WF series filters are All-PTFE structure. The filters use high flow rate PTFE membranes. This kind of filters is especially designed for chemicals including SC1, SC2, 49HF, HNO3, EKC and NMP in SEMI-WEC application.
Excellent filter design could ensure low pressure drop across the filter and good particle removal performance. The fluoropolymer material possesses low concentration of extractables and other contaminants that may be detrimental to the process, and provides high retention performance in the application at the same time.
Full Description
Online Ordering
暫無選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |

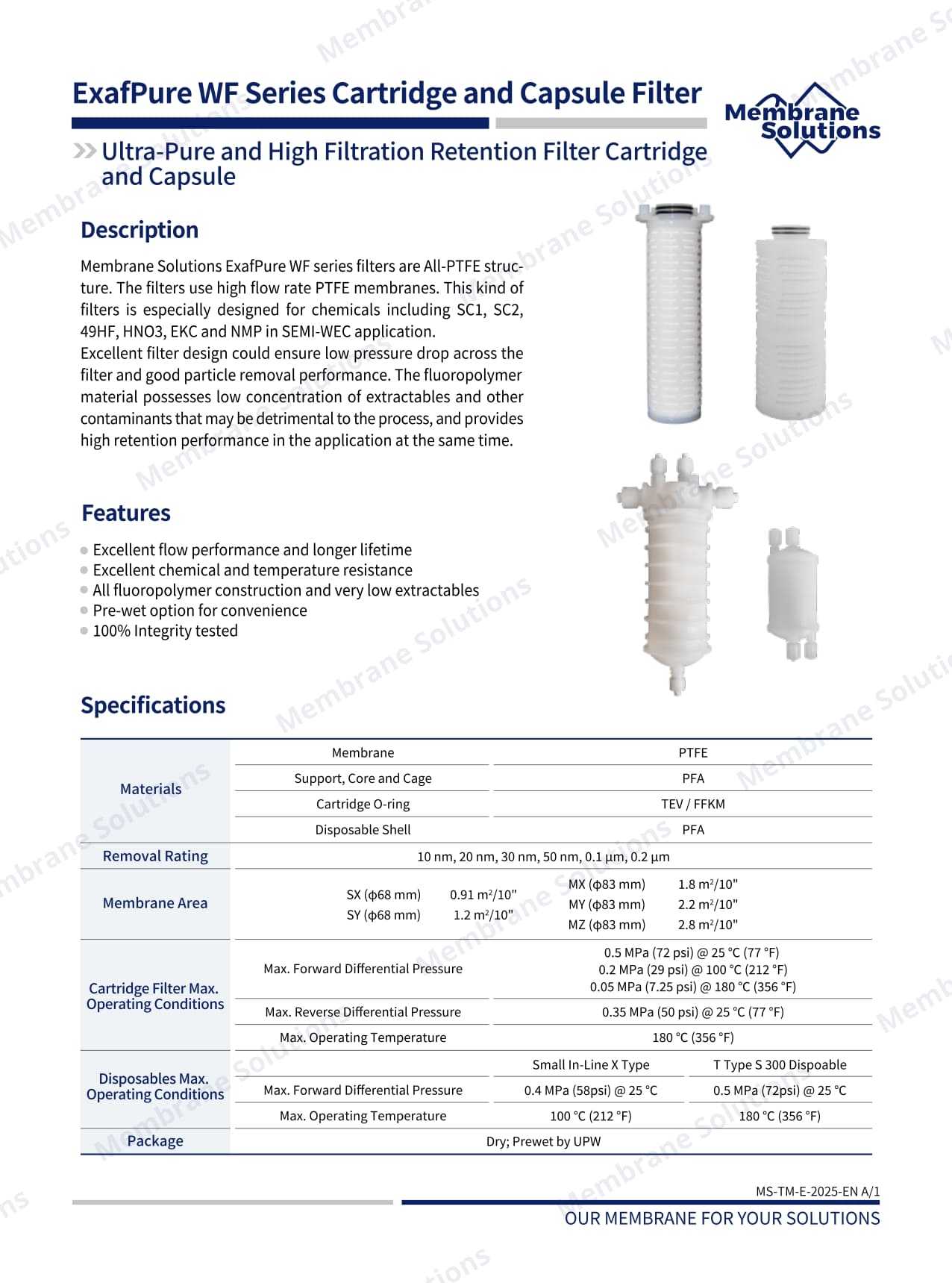

| ExafPure WF Series Datasheet |
Features
- Excellent flow performance and longer lifetime
- Excellent chemical and temperature resistance
- All fluoropolymer construction and very low extractables
- Pre-wet option for convenience
- 100% Integrity tested
Applications
Technical Parameters
| Materials | Membrane | PTFE | ||
| Support, Core and Cage | PFA | |||
| Cartridge O-ring | TEV/FFKM | |||
| Disposable Shell | PFA | |||
| Removal Rating | 10nm, 20nm, 30nm, 50nm, 0.1μm, 0.2μm | |||
| Membrane Area | SX (φ68mm) SY (φ68mm) |
0.91m²/10” 1.2m²/10” |
MX (φ83mm) | 1.8m²/10” |
| MY (φ83mm) | 2.2m²/10” | |||
| MZ (φ83mm) | 2.8m²/10” | |||
| Cartridge Filter Max. Operating Conditions |
Max. Forward Differential Pressure | 0.5 MPa(72 psi)@25℃ (77℉) | ||
| 0.2 MPa(29 psi)@100℃ (212℉) | ||||
| 0.05 MPa(7.25 psi)@180℃ (356℉) | ||||
| Max. Reverse Differential Pressure | 0.35 MPa(50 psi)@25℃ (77℉) | |||
| Max. Operating Temperature | 180℃(356℉) | |||
| Disposables Max. Operating Conditions |
Small In-Line X Type | T Type S 300 dispoable | ||
| Max. Forward Differential Pressure |
0.4 MPa(58 psi)@25℃ | 0.5 MPa(72 psi)@25℃ | ||
| Max. Operating Temperature |
100℃(212℉) | 180℃(356℉) | ||
| Package | Dry; Prewet by UPW | |||
