Capsule Filters MS-SPW Series
Request a QuoteMS® Capsule Filters MS-SPW Series Description
MS® Capsule Filters MS-SPW series combine the widest available range of filter media and is produced by a proprietary technique, varying the fiber diameter continuously to provide a pore-size distribution from coarse (upstream) to fine (downstream) while maintaining constant void-volume throughout the depth of the filter medium.
Features
- Standard Connections fit most situation;
- Available in varies of fibers and removal ratings;
- Capsule design makes removal fast and simple;
- Excellent for the filtration of costful solutions.
Application
- Chemicals and Solvents
- Oils
- Ink and Pigments
- Coolants, Varnishes and Paints
- Food and beverage
- Clean air and gas equipment
MS-SPW7/SPW9 Capsule Filters
Technical Specifications
| Materials of construction: |
| Filter Media: PP PTFE |
| Housing: Polypropylene |
| Dimensions |
| MS-CP7: Length 6.5 in (165mm) |
| MS-CP9: Length 8.1 in (216mm) |
| Diameter: 2.7 in (69mm) |
| Connections |
| MS-SPW7 |
| Inlet/Outlet: 1/4" swage |
| Vent/Drain: 1/4" swage |
| MS-SPW9 |
| Inlet/Outlet: 1/4" swage |
| Vent, Drain: 1/8" swage |

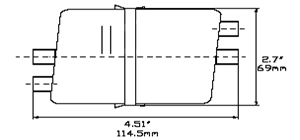

MS-SPW4/SPW5 Capsule Filters
Technical Specifications
| Materials of construction: |
| Filter Media: PP PTFE |
| Housing: Polypropylene |
| Dimensions |
| Nominal Length: 4.51 in (114.5mm) |
| Diameter: 2.7 in (69mm) |
| Connections |
| Inlet/Outlet: 1/4" swage |
| Vent/Drain |
| MS44: 1/4" swage |
| MS5301: 1/8" swage |
MS-SPW3/SPW2 Capsule Filters
Technical Specifications
| Materials of construction: |
| Filter Media: PP PTFE |
| Housing: Polypropylene |
| Dimensions |
| Nominal Length: 3.2 in (82.3mm) |
| Diameter: 2.7 in (69mm) |
| Connections |
| Inlet/Outlet: 1/4" swage |
| Vent/Drain: |
| MS-SPW2: 1/4" swage |
| MS-SPW3: 1/8" swage |

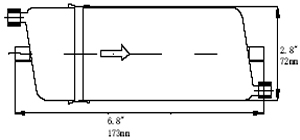

MS-SPW6 Capsule Filters
Technical Specifications
| Materials of construction: |
| Filter Media: PP PTFE |
| Housing: Polypropylene |
| Dimensions |
| Nominal Length: 6.8 in (173mm) |
| Diameter: 2.8 in (72mm) |
| Connections |
| Inlet/Outlet: 3/8" swage |
| Vent/Drain: 1/4" swage |
