Capsule Filters MS-BPZ series
Request a QuoteCapsule Filters MS-BPZ series Description
MS® Capsule Filters MS-BPZ series combine the widest available range of filter media and is produced by a proprietary technique, varying the fiber diameter continuously to provide a pore-size distribution from coarse (upstream) to fine (downstream) while maintaining constant void-volume throughout the depth of the filter medium.
Features
- Standard Connections fit most situation;
- Available in varies of fibers and removal ratings;
- Capsule design makes removal fast and simple;
- Excellent for the filtration of costful solutions.
Application
- Chemicals and Solvents
- Oils
- Ink and Pigments
- Coolants, Varnishes and Paints
- Food and beverage
- Clean air and gas equipment

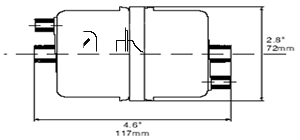

MS-BPZ2 Capsule Filters
Technical Specifications
| Materials of construction: |
| Filter Media: PP PTFE |
| Housing: Polypropylene |
| Dimensions |
| Nominal Length: 4.6 in (117mm) |
| Diameter: 2.8 in (72mm) |
| Connections |
| Inlet/Outlet: 1/4 NPT |
| Vent/Drain: 1/8 NPT |
MS-BPZ5 Capsule Filters
Technical Specifications
| Materials of construction: | |
| Housing | Polypropylene |
| Vent | On inlet |
| Filter Media | Polypropylene |
| Support System | Polypropylene |
| Operating Conditions | |
| Maximum Operation Temperature: | |
| 40℃(104℉) @ 2.07Bar(30psid) | |
| Maximum Operation Pressure: | |
| Liquid: 5.17Bar(75psid) @ 25℃(77℉) | |
| Air: 3.45Bar(50psid) @ 25℃(77℉) | |
| Maximum Differential Pressure | |
| 4.14Bar(60psid) @ 25℃(77℉) | |
