Ultrafiltration Membranes: An Overview of Membrane Solutions

Technology and Applications

Ultrafiltration technology plays an important role in industrial water treatment projects. Compared to traditional filter media filtration, this water treatment technology uses uf membrane filter for higher filtration accuracy, effectively removing not just bacteria, viruses, and macromolecular organic matter, but also colloids and other particulates. we can find it applied in various water treatment such as industrial wastewater reuse and municipal drinking water, and food and beverage, pharmaceutical, and more.

in this blog,we focus on filter uf application and help you find suitable UF membrane .

What ultrafiltration solve in each application?

1. Drinking water purification:

Problem: Drinking water may contain impurities such as bacteria, viruses, suspended matter and colloids.

Solution: Column ultrafiltration membranes can effectively remove these impurities and provide high-quality drinking water. Its microporous structure can intercept bacteria and viruses while maintaining high flux.

2. Industrial wastewater treatment:

Problem: Industrial wastewater may contain heavy metals, grease and other organic matter.

Solution: Ultrafiltration membranes can effectively separate these pollutants and help achieve wastewater reuse or discharge in compliance with standards. The high separation performance and chemical corrosion resistance of ultrafiltration membranes make them excellent in treating complex industrial wastewater.

3. Seawater desalination pretreatment:

Problem: Seawater contains a large amount of suspended matter and colloids, which can affect the performance of subsequent reverse osmosis membranes.

Solution: Column ultrafiltration as a pretreatment step can effectively remove these impurities, extend the service life of reverse osmosis membranes, and improve the efficiency of the entire system.

4. Municipal wastewater treatment:

Problem: Municipal wastewater contains a large amount of suspended solids and organic matter.

Solution: Ultrafiltration membranes can efficiently remove these solids and organic matter, helping to achieve wastewater recycling. The high flux and low energy consumption characteristics of ultrafiltration membranes make them economically advantageous in municipal wastewater treatment.

How to find suitable UF membrane?

Pore size: The pore size of the ultrafiltration membrane is usually between 0.01-0.1 microns, MS UF pore size is at 0.03 um,which can effectively intercept bacteria, viruses and suspended matter.

Chemical stability: MS applied the modified hydrophilic PVDF membrane with easy wetting performance,it has good tolerance to various chemicals and is suitable for treating wastewater with complex chemical properties.

Low fouling tendency and energy saving: The ultrafiltration membrane has a smooth surface, low fouling tendency, and is easy to clean and regenerate, while Energy saving due to low operating pressure.

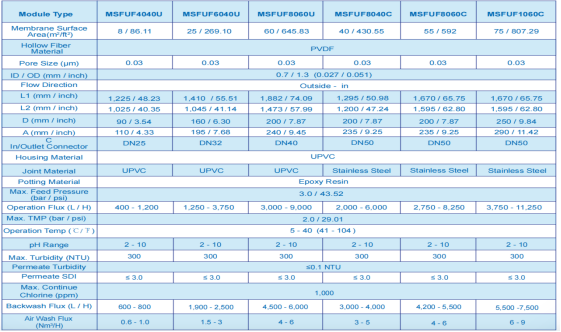

Various size module for option, for connection, MS offer Unions Joint and Coupling Joint for option and its UF membrane size can do 8 to 75m2, which can applied in skid system to large engineering project. check out the module list as below:

At Membrane Solutions, Retrofit module to other brands such as Hydranautics,Dow and more can be alternative to your need. once you have retrofit project, you can directly contacts us for module detail.

MS not only provides comprehensive quality assurance but also excellent customer service. Let our team of experts assist you in completing projects, whether for testing stock solutions, on-site debugging, or building systems for your facility, with the best solutions tailored to your requirements.

Backed with our full-scale set up, trust us to only offer reasonable water solutions, accurate fault diagnosis, and convenient technical support for any equipment issues our customers might encounter.

If you are interested in Membrane Solutions Ultrafiltration components for your plant and need more details, feel free to visit our website: http://www.zsxmh.com/ultrafiltration_module.htm. You can also get in touch with us here: http://www.zsxmh.com/contact_us.htm
