High Flow cartridge filter :Its function to save cost and boom efficiency
2025-09-15
MS
1

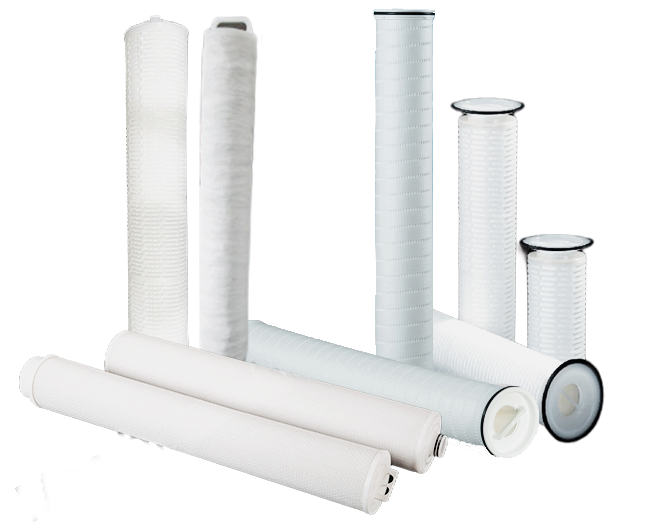

In the fields of water treatment, chemical industry, pharmaceutical industry, etc., high-flow filter are becoming a powerful assistant for enterprises to reduce costs and increase efficiency. The processing capacity of a single filter element can reach more than 30 tons per hour, which is 5-8 times higher than the efficiency of traditional filter elements. Today, let us take a deeper look at high-flow filter elements. Product Introduction
Technical parameters
Filtration accuracy: The high-flow filter element uses membrane filtration materials with various accuracy, such as 1μm, 3μm, 5μm, 10μm, etc. Taking a 5μm precision filter element as an example, the filtration efficiency can reach 99.9% at 5 microns, and the filtration efficiency for 3-micron particle impurities can also reach more than 99.5%. Size specifications: The diameter is generally large, such as the common ones are 152mm, etc.; the length can be selected from 508mm, 1016mm, 1524mm, etc.; the common inner diameter is 89mm, etc. Operating parameters: The working pressure is generally 0-1.0Mpa, the working temperature is room temperature, and the applicable pH value range is usually 1-13.
Application field
Industrial water treatment system: In electronic manufacturing plants, pharmaceutical companies and food processing plants, large flow filter elements are usually used in the pretreatment stage to remove larger particles of impurities in the water, protect subsequent reverse osmosis membranes and ion exchange resins and other equipment, and extend their service life. Commercial water purification equipment: Suitable for various public places such as schools, hospitals, hotels, and restaurants to meet the filtering needs of large-scale water use. Agricultural irrigation system: Provide water purification solutions for large-scale planting bases to ensure the quality of irrigation water. Other fields: It can also be used for filtration of condensate water in power plants, filtration of water in the biopharmaceutical industry, paint and coating petrochemicals, microelectronic film fiber resins and other fields.
Product Advantages
Cost advantage: Use fewer filter elements to reduce labor and operating costs; use smaller filter housings to reduce investment costs and save floor space. Convenient replacement: Replacement of filter elements is faster, simpler and safer, and its inside-out structure makes filter element replacement easy while keeping pollutants trapped inside the filter element. Superior performance: The folded surface design makes the pressure drop of high-flow filter elements lower than other filter elements and longer service life; it allows high-flow media to pass through the filter material, with the advantages of high efficiency, low pressure loss and long life. Good chemical compatibility: The hot-melt bonded polypropylene material can prevent particle release and unloading, and has a wide range of chemical compatibility and can be used in a variety of fields. Wide flow range: Multiple filter elements can be installed in the filter housing, and a wide range of flow rates can be used, whether it is startup or continuous operation.
