Disposable Vacuum Filtration Units for Tissue Culture and Biological Fluid Purification
2025-04-09
MS
2

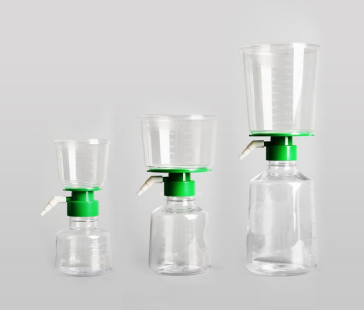

What Are Vacuum Filtration Units?
- Vacufil™Ready to use Disposable Vacuum Filtration units are designed for sterile filtration of tissue culture media, biological fluids, and buffers. Typically 250 - >1000mL
- Pre-sterilized
- Includes membrane filter, clear polystyrene graduated funnel with threaded polyethylene adapter and graduated polystyrene reservoir with a separate polyethylene cap.
- Optional integrated Glass fiber pre-filter to increase throughput.
- Funnel is designed with GL45 threads for use with various reservoirs .
What are the Features About MS Vacuum Filtration Units?
- Single Use and Gamma Ray pre-sterilized
- Sterile graded 0.22μm membrane: LRV＞7 for Brevun- dimonas diminuta, ATCC19146.
- Biosafety: Meet USP<87>, USP<88>
- Non-pyrogenic, Nuclease-Free,low extractables and surfactant-free ensures purity of iltrate.
- Extreme-low Protein Binding <1.5% (PES)

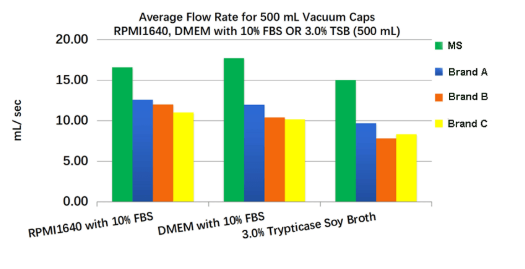

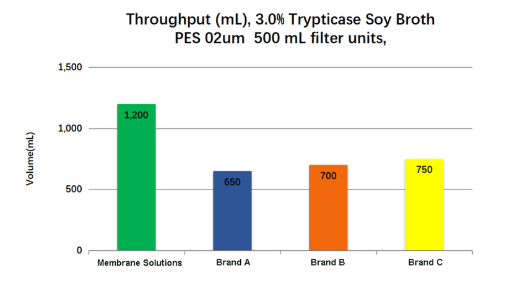

- Excellent Thoughput, for faster iltration and moreprocess volume.
- GL45 threads accepts commonly used bottle style.Ergonomic design for convenient use and stable eiltration
- Glass iber pre-ilter is available.
What Are The Applications of MS Vacuum Filtration Units?

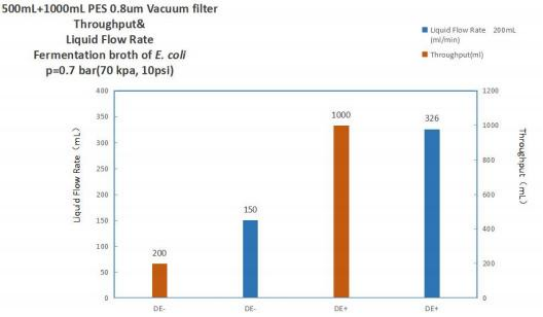

- Case1: Clarification and Filtration of up to 1,000 mL Microbial fermentation broth.
- E.coli :1*109cfu/mL
- DE: 10~17%highly pure diatomaceous earth
- Recovery: > 85%
- Case2: Vacufil™ +Nylon mesh
Nylon mesh filter are compatible with a broad range of solvents .
They find applications in particle analysis, solvent filtration, particle removal, and clarification.
Application
• Collection of algae and cells
• Particle analysis
• Large particulate filtration
• Prefiltration of solvents
Features
• Three pore sizes available:40, 70 or 100 μm for various applications.
• Single use and Gamma Ray pre-sterilized,Individual packed.
What Are Specification of Membrane Solutions Vacuum Filtration Units?
|
Membrane Type
|
Highly Asymmetrical PES (Green) Hydrophilic PVDF (Yellow) CA (Yellow) Nylon (Yellow) CN(Yellow) PTFE(Yellow) Nylon Mesh filter |
|
Available Reservoir Volumes(ml）
|
250/250 500/500 500/1000 1000/1000 |
|
Pore Size ( μm） |
0.10--Removal of mycoplasma 0.22--Removal the bacterial 0.45--Clarifiy the large particles 0.80---Pre-filtrationand clarification |
|
Membrane Diameter(mm)
|
250ML Funnel--50mm 500ML Funnel--90mm 1000ML Funnel-90mm |
How to Choose the Right Membrane Solutions Vacuum Filtration Units?
To choose the right vacuum filtration unit, consider your application's needs, including the volume of sample, type of solvent, and desired pore size, then select appropriate filter holder, membrane, and vacuum pump materials.

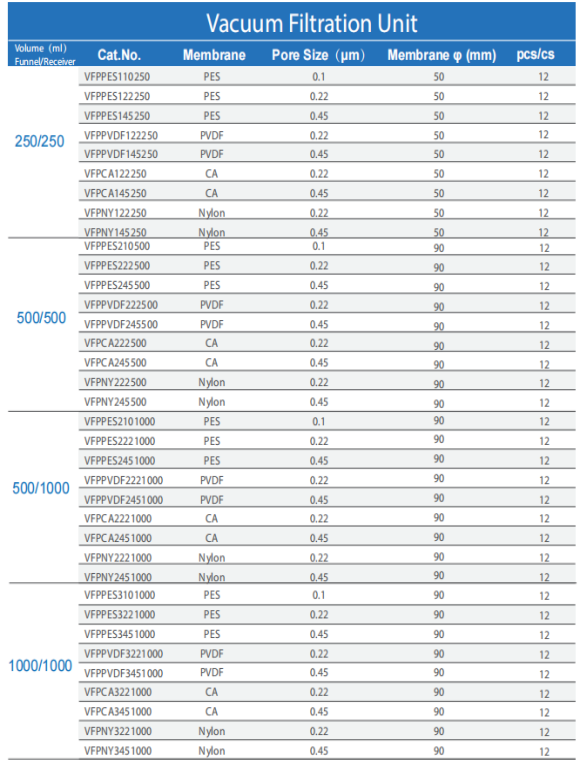

The following order information provides some reference suggestions for selecting the most suitable vacuum filtration.
Conclusion
For more detailed insights and inquiries about Vacuum Filtration Units, please visit the Membrane Solutions website www.zsxmh.com You can leave a message or follow us for updates on our latest products and innovations. We're here to assist you with your filtration needs and provide tailored solutions that meet your specific requirements. Don't hesitate to reach out!
