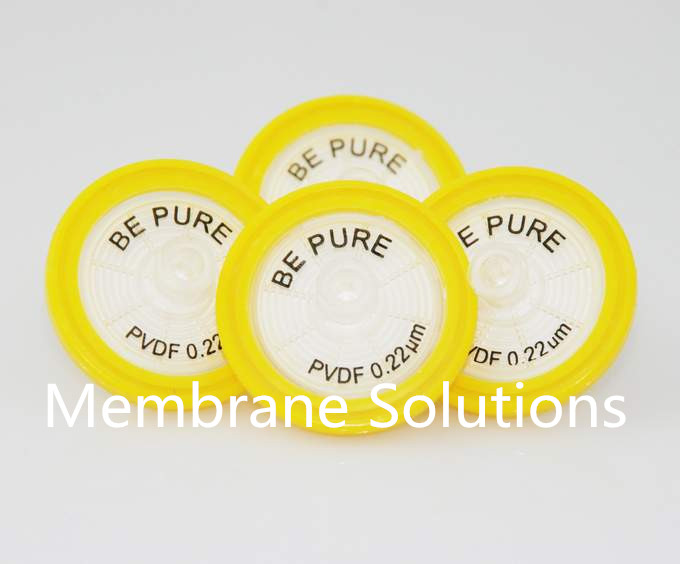

BepureTM Syringe Filter Introduction
MS Bepure
TM Your time is precious as well as your samples，excellent performance makes you on no longer worried about your filtration.This new range BEpure 33mm color-coded syringe filters are designed with exquisite technology, which has increased performance, introduced hydrophilic PVDF membrane, to meet the high pure needs of analysis.
bepure_syringe_filter.pdf
Features
- More efficient: faster speed；more effective filtration area;save experimental analysis time
- Good reproducibility: The housing materials and membranes are low in extractables that can interfere with analytical analyses
- Withstand greater pressure: maximum housing pressure of 10 bar(145 psi), filtration speed faster than the millex 33 mm.
- More choice :offer 7 kinds of membranes: NY/PES/ PTFE/PVDF/ CA,meet all of the applications and especially suitable for HPLC analysis,provide the sterilization separate packaging
- Low Hold-up Volume: hold-up volume (after air purge) decrease 20% than 25 mm Millex filters.better able to deal with small volume sample or expensive samples.
Application
- Non-Sterile Preparation of aqueous solutions prior to chromatography or other instrument analyses
- Sterile Sterilize tissue culture media and additives, protein solutions, virus suspensions, DNA, and other aqueous solutions.
Technical Specifications
| Parameters |
33mm |
| Housing Material |
Virgin Medical Polypropylene |
| Effective Filtration Area(cm2 ) |
4.5 |
| Pore Size (μm) |
0.22 , 0.45 |
| Holdup volume (μl) |
<80 |
| Sample volume (ml) |
<120 |
| Inlet connection |
Female luer lock |
| Outlet connection |
Male luer lock |
| Maximum Operating Temperature |
50℃ |
| Maximum Operating Pressure |
10bar |
